- solar inverter can be Grid-connected Inverter operation, anti-reverse-current mode, and off-grid output

- Smart Real-time Monitoring & Cloud Control via PC software and mobile APP

- Mains priority, solar priority, hybrid (mains + solar), and solar-only charging modes

- Battery-free output and PV-only startup to supply loads, with battery activation capability for emergency situations.

- Supports up to 9 units solar inverter in parallel, with configurable single-phase or three-phase AC output.

Send Inquiry

Product Description

Product Details

MHT series solar inverter is a new all-in-one solar charge inverter, which integrates solar energy storage & utility charging energy storage and AC sine wave output. Thanks to DSP control and advanced control algorithm, our solar inverter has high response speed, high reliability and high industrial standard.
Four charging modes are optional: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging; and two output modes are available: inverter and Mains, to meet different application requirements.

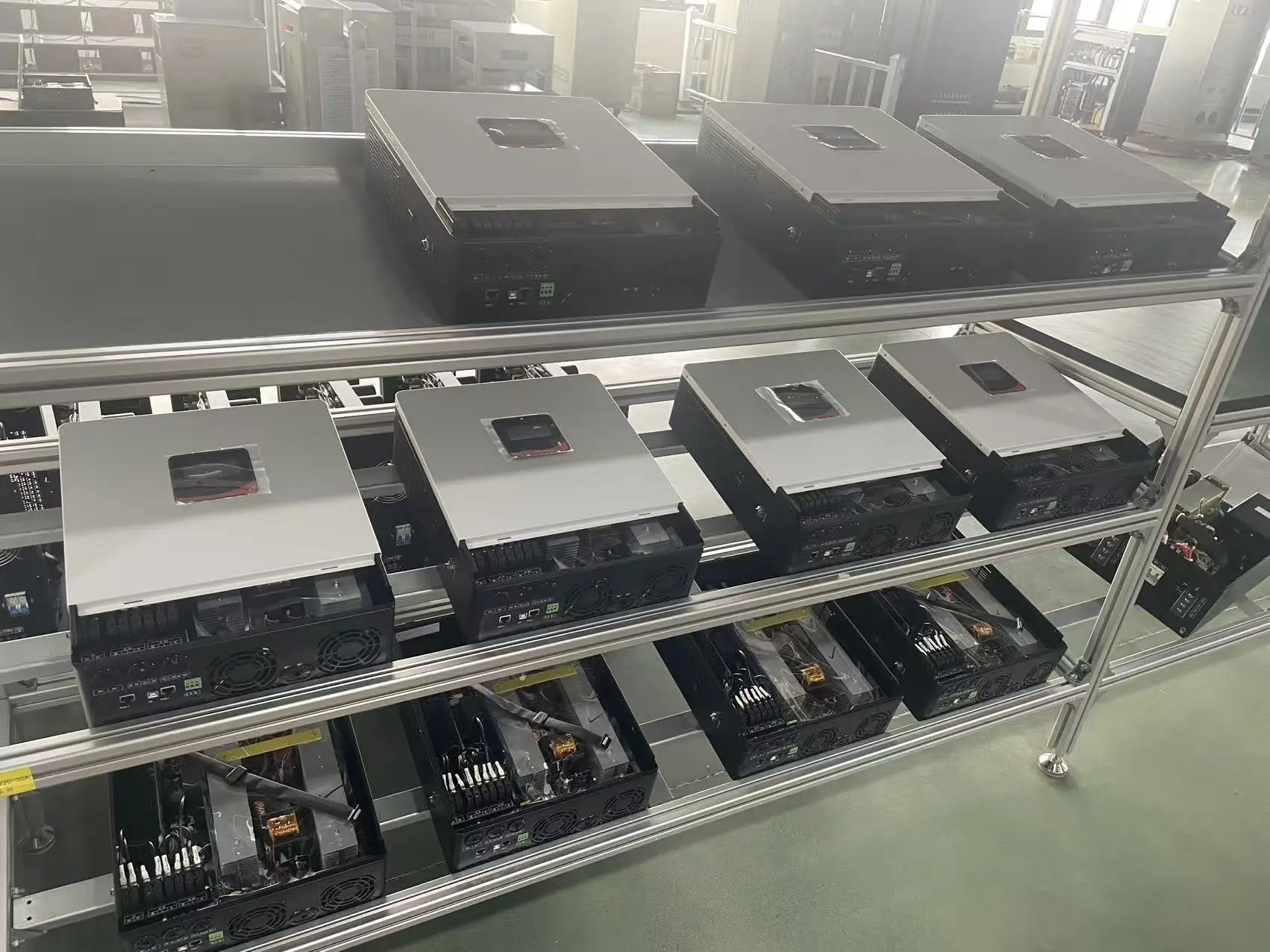

MHT Solar Inverter Overview
MHT Solar Inverter Interface

Function Introduction

  • Three output modes: When grid-connected function is enabled, grid-connected power generation or anti-reverse-current can be set. The system also supports off-grid output mode.
  • Smart Monitoring: Full support for host computer and APP cloud communication. Users can monitor operating data and system status in real time, with the ability to modify parameters remotely.
  • Four Charging Modes: Flexible energy management with Mains priority, Solar priority, Hybrid charging, and Solar-only options.
  • Emergency Functions: Supports battery-free output. It can start and power loads using only PV input, including a battery activation function.
  • Parallel Scalability: Flexibly combine units to achieve up to 9 machines in parallel. Supports single-phase and three-phase AC output configurations.
  • Comprehensive Protection: Integrated hardware and software protection that displays specific fault types for rapid troubleshooting.

Technical Parameters

MODEL MHT48-3500 MHT48-5500 MHT48-10K
INVERTER OUTPUT
Rated output power (W) 3500 5500 10000
Maximum Peak Power (W) 6000 10000 15000
Load Capacity with Motors 2HP 4HP 6HP
Rated AC Output 230Vac (200/208/220/240VAC), 50/60Hz
Output Voltage Waveform Pure Sine Wave
BATTERY
Battery Type Lithium / Lead-acid / User Defined
Rated Battery Voltage 48Vdc
Max. Hybrid Charging Current 80A 100A 200A
PV CHARGING
Max. PV array power 4000W 5500W 5500W+5500W
Max. Open Circuit Voltage 500Vdc 500Vdc 500Vdc+500Vdc
MPPT Tracking Efficiency 99.9%
SPECIFICATIONS
Dimensions (W*D*H-mm) 350*130*455 350*130*455 445*130*630
Weight (kg) 11 12 27
Operating Temperature -10°C ~ 55 °C
Note: Above data are subject to change without notice. Special voltage could be customized.

Frequently Asked Questions

What types of batteries does the MHT series inverter support?
The MHT series is compatible with Lithium-ion, Lead-acid, and User-defined battery profiles, operating at a 48Vdc rated voltage.
Can this inverter operate without a battery?
Yes, the inverter supports battery-free output and can be started and run using only PV (solar) input to power the connected loads.
How many units can be connected together?
The MHT solar inverter features a parallel function that allows for the combination of up to 9 machines to expand system capacity.
What charging modes are available?
There are four modes: Only Solar, Mains Priority, Solar Priority, and Mains & Solar hybrid charging.
Is remote monitoring available?
Yes, the system supports both host computer interfaces and APP cloud communication for real-time monitoring and parameter modification.
What is the switching time between Inverter and Bypass?
The typical switching time is approximately 10ms, ensuring a stable power supply for most electronic equipment.
